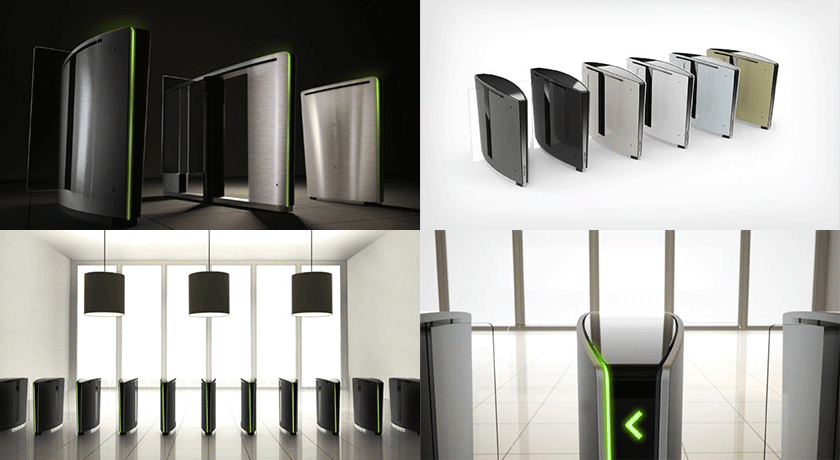

Speedlane Lifeline
The Speedlane Lifeline is a BoonEdam product, the Holland company with over 140 years experience with Speed Gate products, operated by AC Motors guaranteeing a smooth operation and high durability. Its attractive design matches nicely to building interiors, and 16 pairs of sensors offer maximized security and safety.
-
Features
- - Integrated solutions are provided with hand vascular biometric scanners, fingerprint devices, card readers or any access control device.
- - Smooth back to back operation for continuous pass
-
-
Only one person can pass through at a time.
· Access granted for only authorized personnel in the system.
· No tail-gating allowed (Anti-tailgating function implemented)
-
-
Self diagnosis function implemented. Resets the system when an
error is detected
-
Specification
Movement BLDC Motor driven operation Material Stainless Steel Number of sensors 16 pairs Pathway width 550 ~ 600mm Glass panel height 1,200 ~ 1,800mm Operation speed 0.5 to 1.0 second Dimension 1,035(H) x 312(D) x 1,440(W) mm
Safety
- - Safety sensors open the Glass Panel automatically when an object or person is detected
- - Stops operation and opens the Glass Panel when an object or person is stuck between the panels.
- - Opens the Glass Panel upon detecting fire alarm or emergency signal
